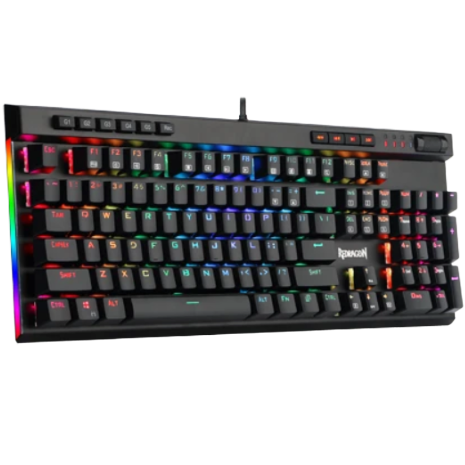

Redragon VATA RGB Mechanical Gaming Wired Keyboard K580 Pro
- Key Switches: OUTEMU Red Switches
- Matrix: 104 Keys Non Conflict
- LED backlit color: RGB
- Keyboard Size: 17.6 x 7.6 x 1.5 inches
- Multimedia keys: 12
- Programmable Macro Keys: 5
- Material: Aluminum Alloy +ABS
Ultra-fast Optical Switches
With OUTEMU optical-mechanical red switches, you will get a chance to enjoy the most delighting typing experience. Each input will be recorded and actuated instantly (0.2ms response time) which is 10 times faster than original mechanical switches.

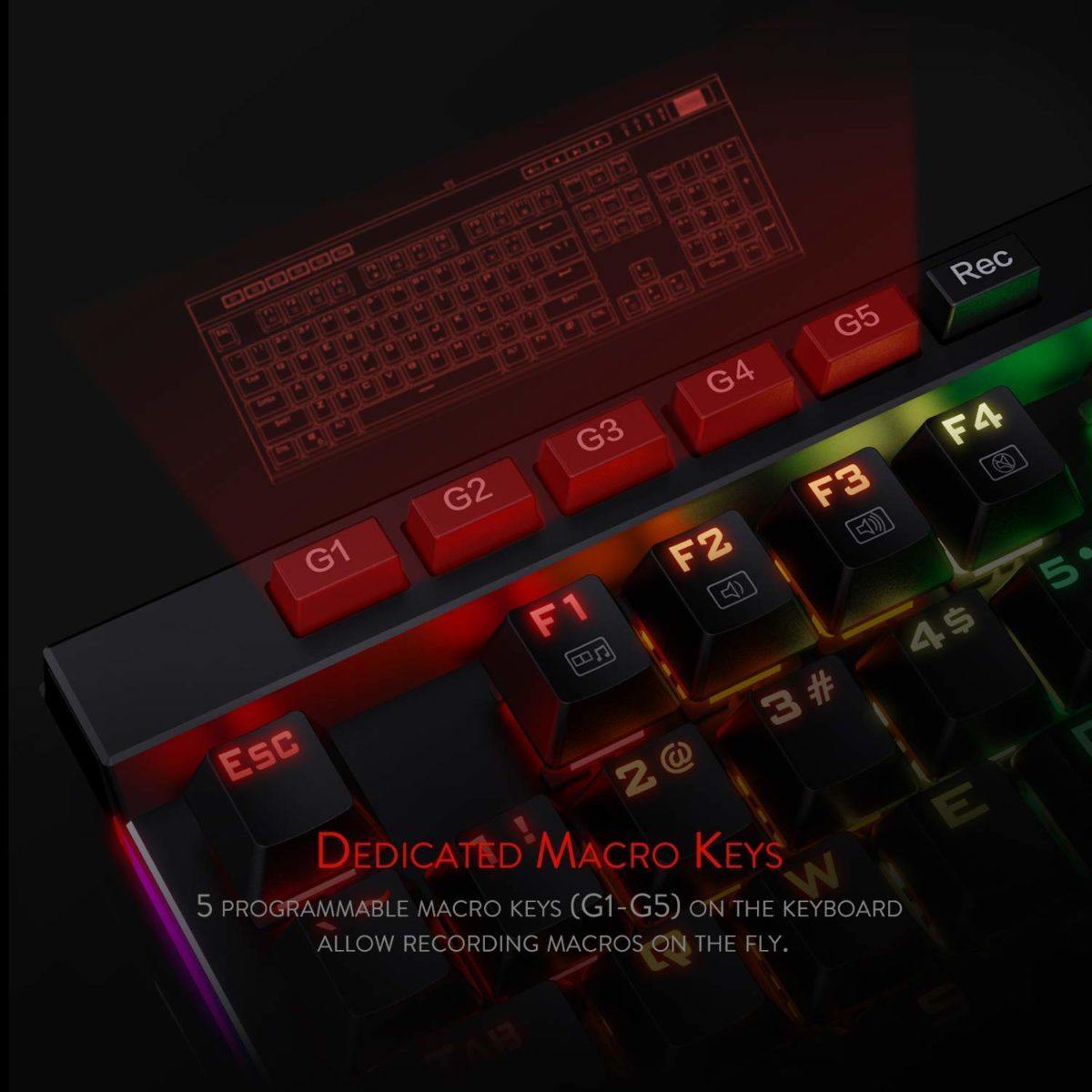

5 MACRO KEYS
There are 5 programmable macro keys(G1~G5) on the keyboard which can be recorded macros on the fly without any additional software required to be installed. Easy to edit and DIY your stylish keyboard.

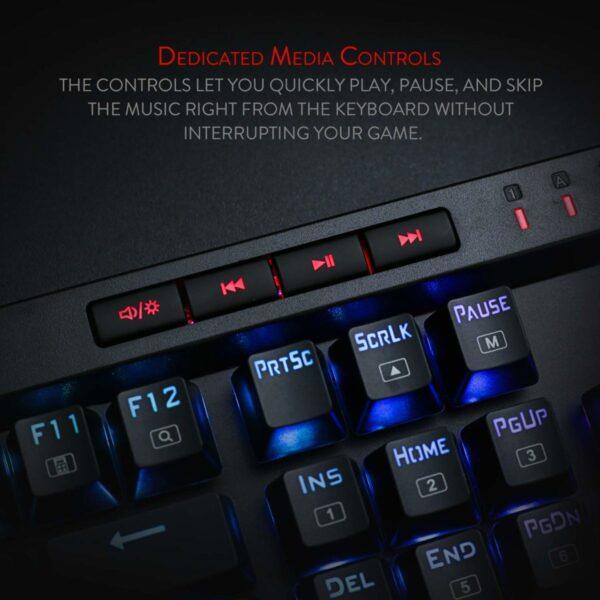

DEDICATED MULTIMEDIA CONTROLS
The multimedia controls let you quickly play, pause, skip the music right from the keyboard without interrupting your game. Also, designed with a volume/backlight adjust wheel, it’s easy to adjust volume or backlight brightness directly with the wheel in the upper right side of the keyboard. Very convenient and cool looking.
RGB BACKLIGHT
18 backlight models allow you to type in the dark. You can adjust its brightness with a control wheel or FN + Up/Down. 5 modes of RGB side edge lighting. The color of each key lighting on the keyboard can be customized easily without installing software, a great choice to DIY your stylish keyboard.
Barely 0 Abrasion
Thanks to the unique and extraordinary optical working principle of the optical-mechanical switches, which makes it non-abrasive, spillproof and dustproof to make the lifespan more longer (100 million times keystroke)than original gaming keyboard.
Features:
- 5 programmable macro keys
- RGB side edge lighting
- WIN key can be disabled for gaming
- 12 Dual action FN and multimedia keys
- Dedicated media controls and volume/brightness adjusting wheel
- All 104 keys are 100% conflict free, anti-ghosting
- Full-Size keyboard with 104 standard keys, full numeric keypad
Keyboard Setting:
- Marco Recording Function
The default setting of the five G keys (ESC+G1~G5) are the same as F1~F5 correspondingly.
Marco recording function:
Step 1: Press [Rec] to start record (The four LEDs flash simultaneously)
Step 2: Press one of the five G keys and it lights up (G1~G5)
Step 3: Press keys to be recorded
Step 4: Press [Rec] once again to save the recording. The [Rec] also lights up.
For example, record 123 on G1: [Rec]?G1?123? [Rec]
How to clear the recording:
To clear a single recorded macro key: Press [Rec]+desired G key (G1-G5) you need to delete, then press [Rec] again. To delete all recorded macro keys(G1-G5): Press and hold [REC] for 5 seconds, the light of [REC] and G key goes off.

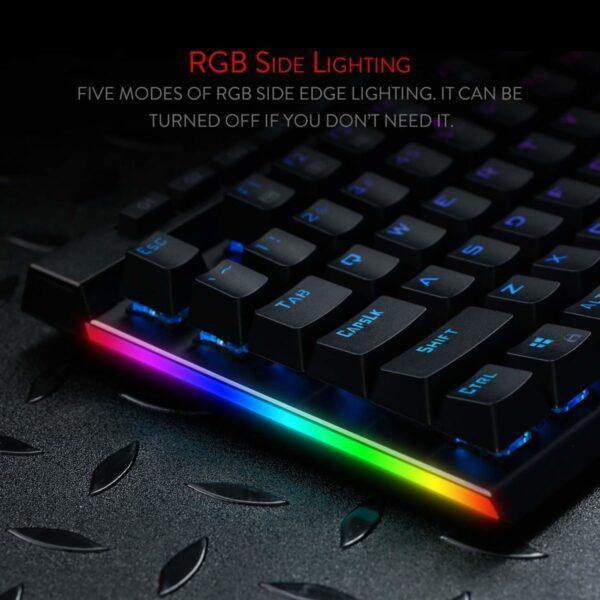

- Two Sides Lighting Setting
- Press FN + [PAUSE] to switch 5 lighting modes on two sides.
- Press FN + [SCRLK] to adjust the lighting speed on two sides.
Specifications:
- Connector: Gold-plated USB
- LED backlit color: RGB
- Keyboard Size: 17.6 x 7.6 x 1.5 inches
- Keyboard Weight: 2.64 pounds
- Multimedia keys: 12
- Programmable macro keys: 5
- Material: Aluminum alloy +ABS
Package List:
- 1x Redragon K580 Mechanical gaming keyboard
- 1x User Manual
- 1x Keycap Puller
- 8x Spared Switches
