Description
- Faster Wi-Fi Speeds - Dual band speeds up to 1733 Mbps on 5 GHz, 600 Mbps on 2.4 GHz.†
- Powerful Processing - Dual-Core CPU delivers power to maintain peak performance for all your devices.

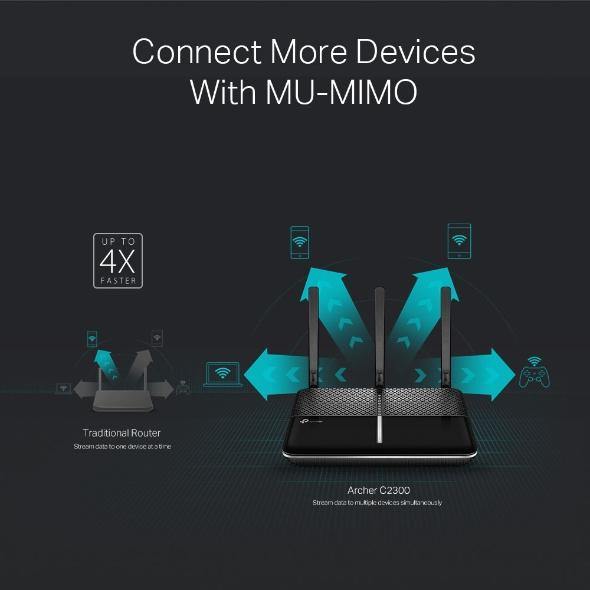

- More Devices - MU-MIMO serves multiple devices at once, reducing wait time and increasing Wi-Fi throughput.‡

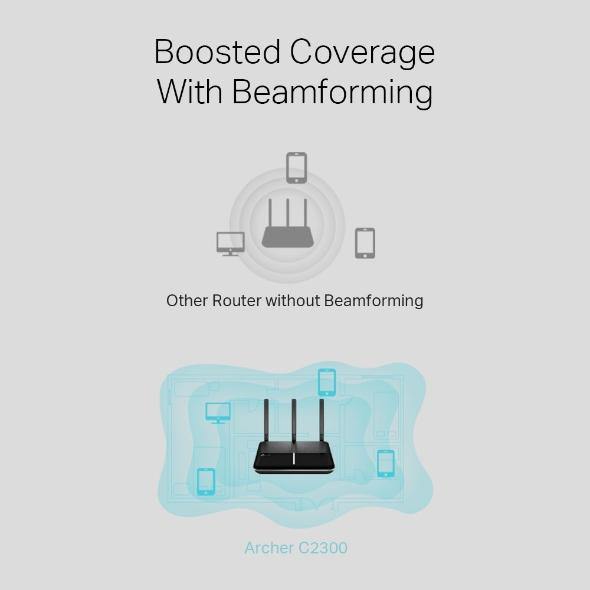

- Ultra Range - Beamforming + Power Amplifier + High-performance Antennas, giving you even greater coverage.
- Smoother Performance - Smart Connect intelligently assigns devices to the best available band.
- Secure Remote Access - OpenVPN & PPTP VPN server for secure remote access to your home network via the internet.
- Easy Setup - Intuitive Phone UI and Tether app for quick network setup within minutes.
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC2300 5 GHz: 1733 Mbps (802.11ac) 2.4 GHz: 600 Mbps (802.11n) |
| WiFi Range |
3 Bedroom Houses 4× Fixed High-Performance Antennas (External and Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity |
Medium Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Dual-Core CPU |

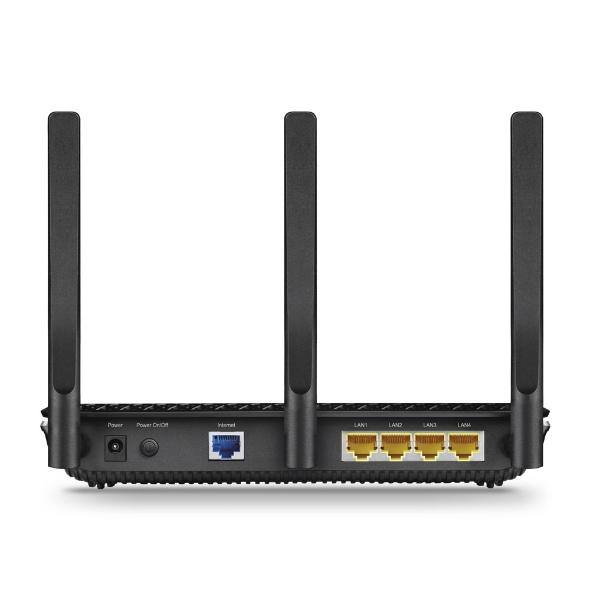

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |

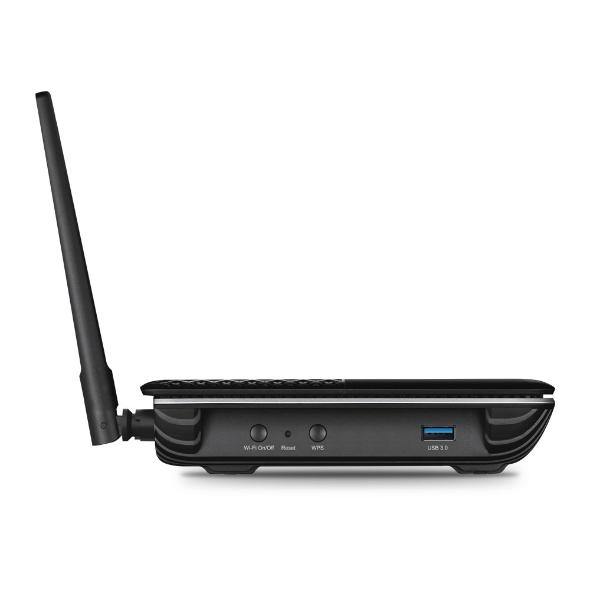

| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 2 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeCare™ Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls |
HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device HomeCare™ QoS QoS by Application |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Virtual Servers Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm) |

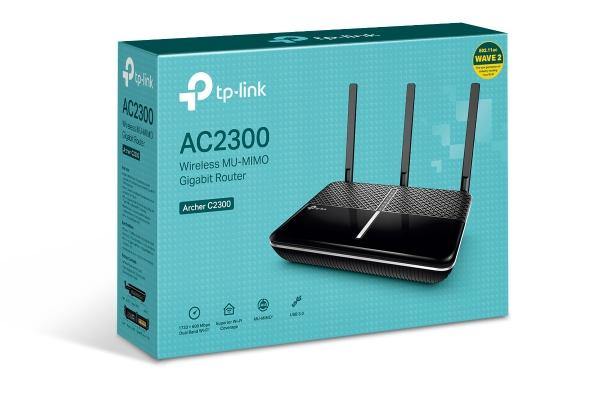

| Package Contents | Wi-Fi Router Archer C2300 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
