Description
- Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
| HARDWARE FEATURES | |
|---|---|

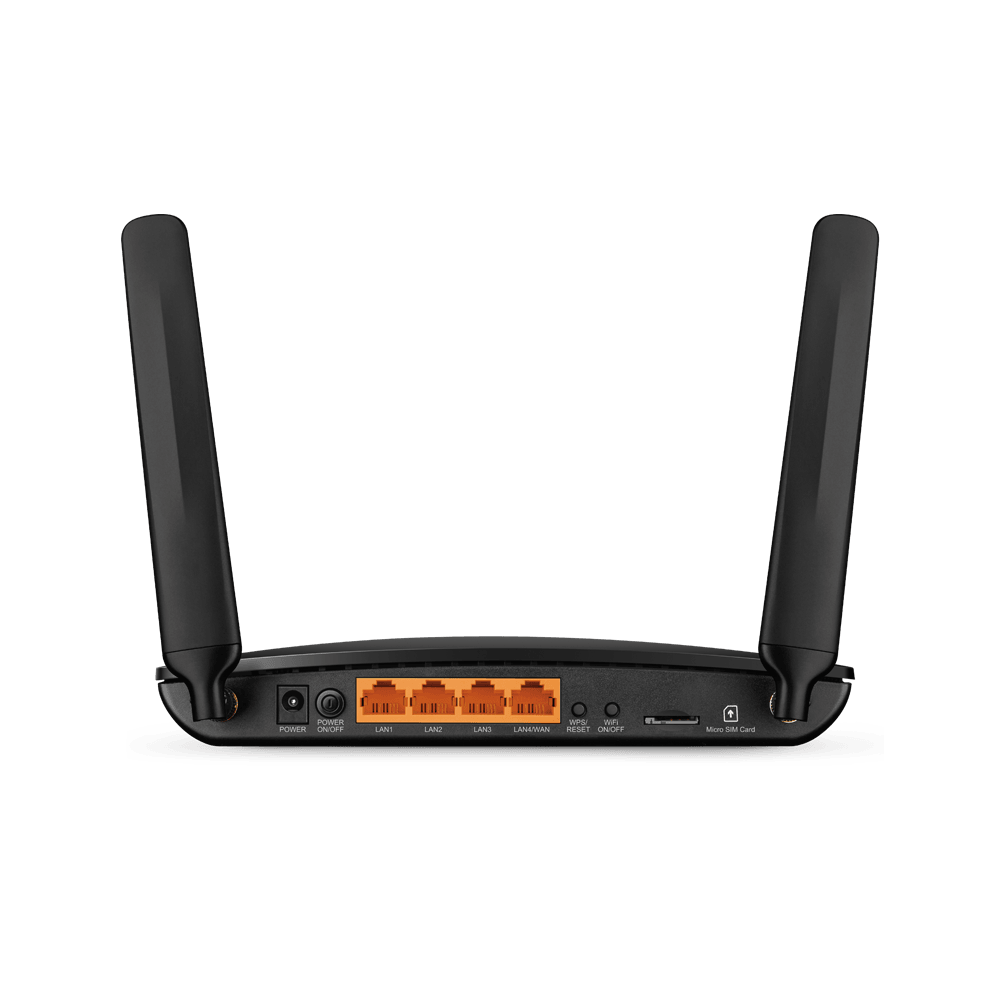

| Interface | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot |
| Button | WPS/Reset Button, WiFi On/Off Button, Power On/Off Button |
| External Power Supply(EU) | 9V/0.85A |
| External Power Supply(APAC) | 12V/1A |
| Dimensions ( W x D x H ) | 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
| Antenna Type | V3/APAC: 2 Internal 4G LTE Antennas V4/V2/V1: 2 Detachable 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Reception Sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Transmit Power | CE: <20dBm(2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE B1/B3 /B7/B8 /B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B40/ B41 * (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/ B8 (2100/900MHz) * B41 support narrow band of 2555-2655MHz |
| SOFTWARE FEATURES | |
|---|---|
| Operating Modes | 3G/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management reboot schedule |
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1 |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | 300Mbps Wireless N 4G LTE Router, TL-MR6400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
