Description
- 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
- Three antennas greatly increase the wireless robustness and stability
- Easy wireless security encryption at a push of WPS button
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
- Compatible with IPv6 -the more recent Internet Protocol version
- TP-LINK Tether App allows quick installation and easy management using any mobile device
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
N300 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2 Bedroom Houses 3× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | Legacy |

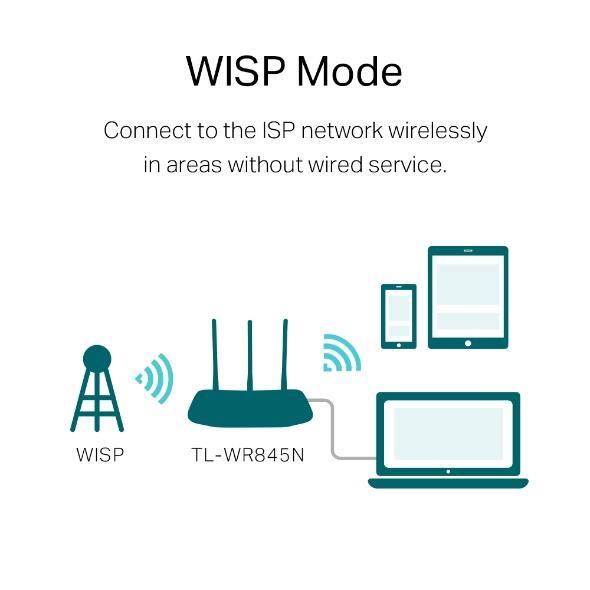

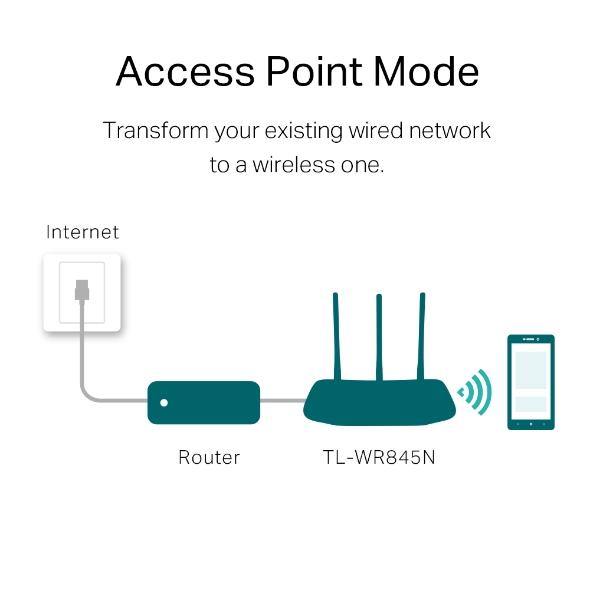

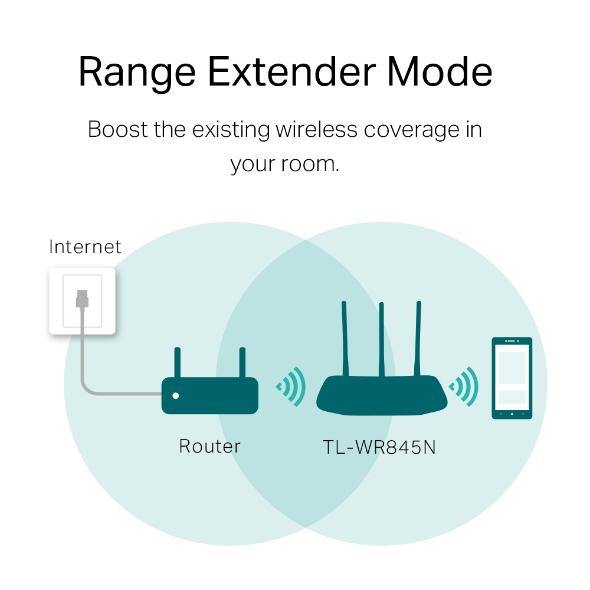

| Working Modes | Router Mode Access Point Mode Range Extender Mode WISP Mode |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |

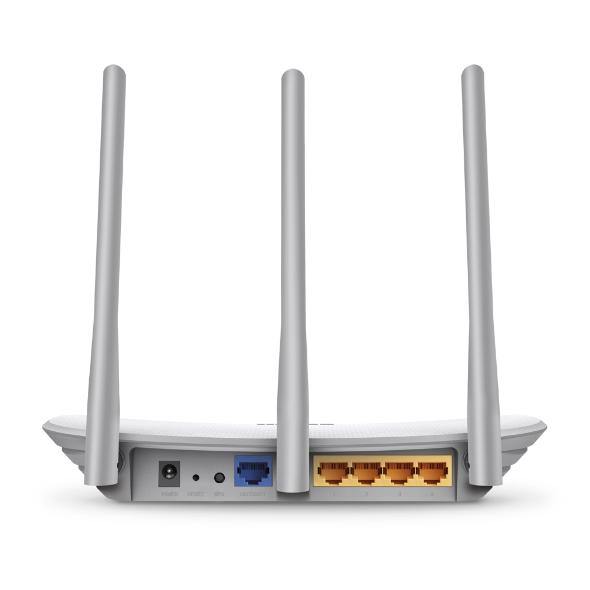

| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | WPS Button Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Package Contents | Wi-Fi Router TL-WR845N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
